64½ vs. 65 Mustang Electrical Differences
By Jason Zimberoff
Compiled from lists on the web by Klaus Schaefer, Mark Dorner, Christopher Duffy
and the book Mustang & Ford Small Block V8 by Bob Mannel
(Go Buy It!)
Special thanks also go out to Charles Turner, and Steve Grant.
|
| Click Here for more 64½ related questions, answers, and info...
Electrical
|

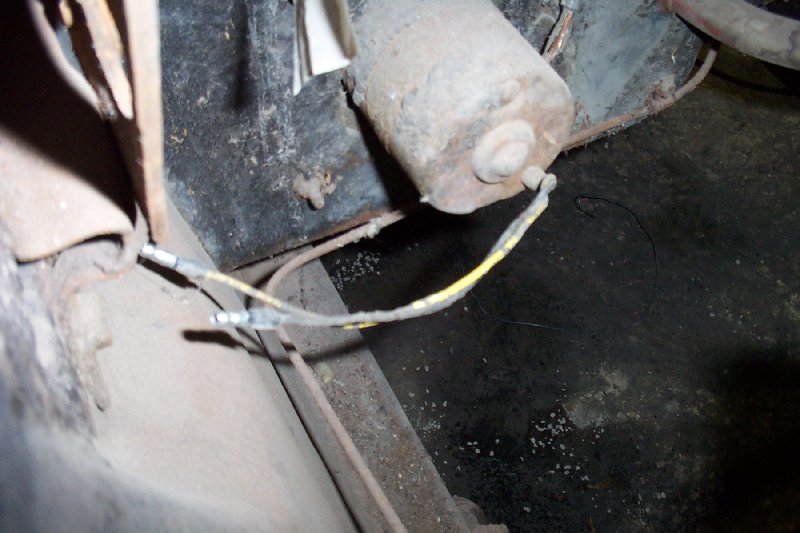

| 1. Tail light wires to bucket are a 3 wire pigtail and are sealed instead of snap on boots on 65's.
|

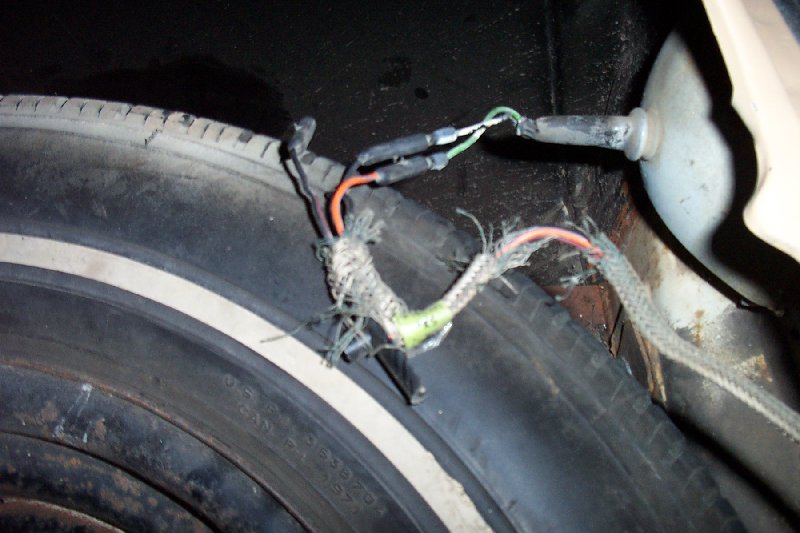

64.5 Tail Light Wires |

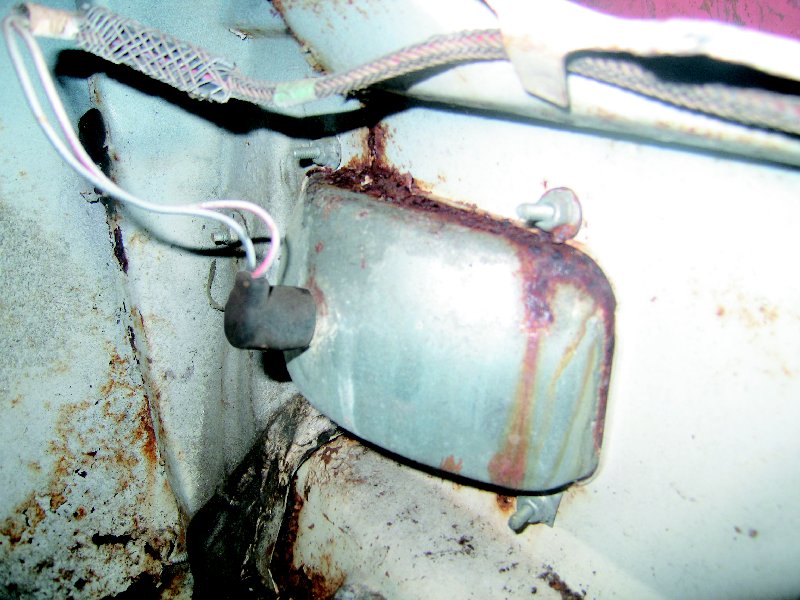

65 Tail Light Wires |
|
| 2. [Removed - see Body #30] |
|
|
|
| 3. Fuse box is unique on 64.5 (longer)
|
64.5 Fuse Box |
65 Fuse Box |
|
| 4. Turn signal switch assembly different on 64
|

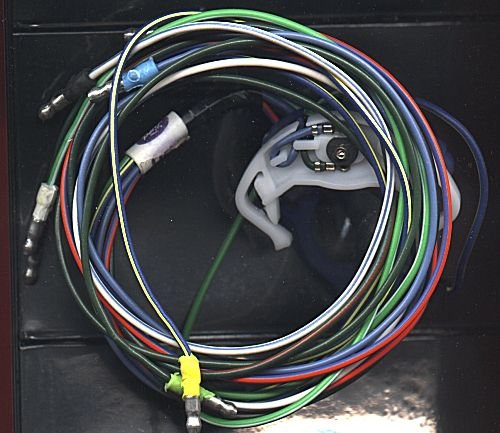

64.5 Turn Signal Switch |
65 Turn Signal Switch |
|

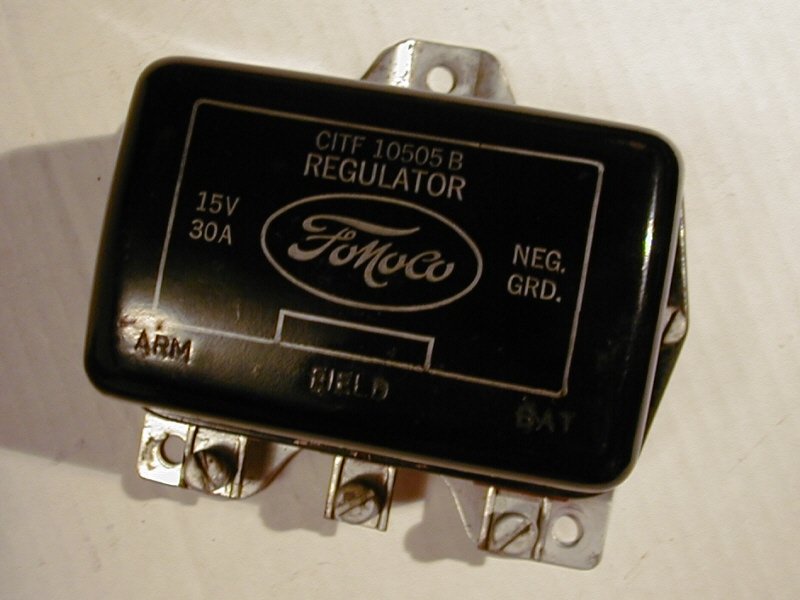

| 5. Voltage regulator has FoMoCo logo
|
64.5 Voltage Regulator |
65 Voltage Regulator |
|

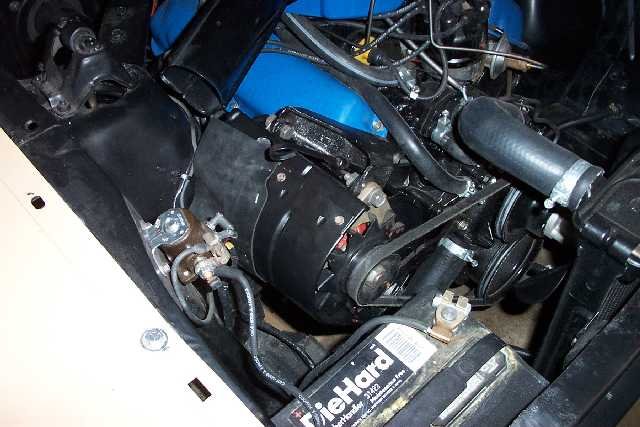

| 6. Generator for all 64 ½ two types - for 170 CID and 260/289 CID
|
64.5 Generator |

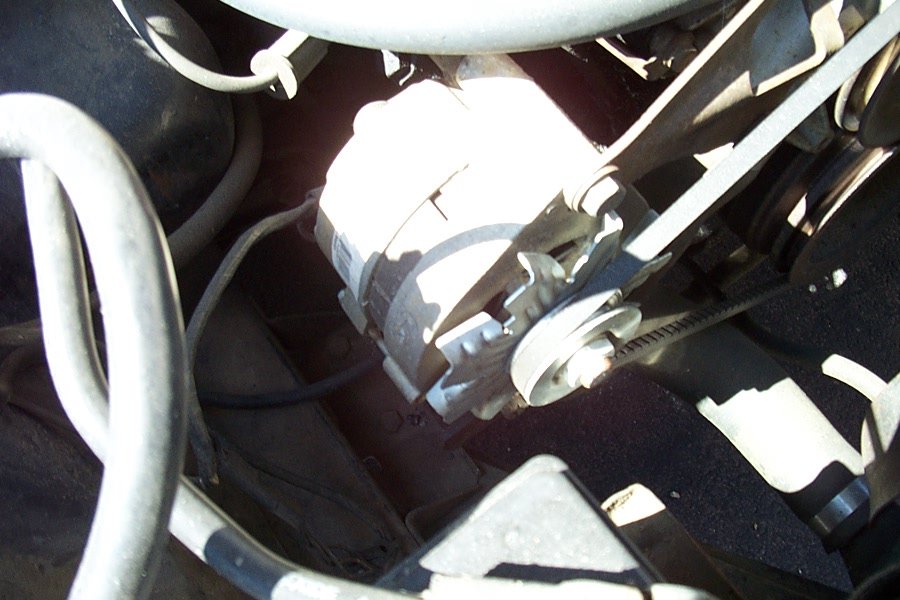

65 Alternator |
|

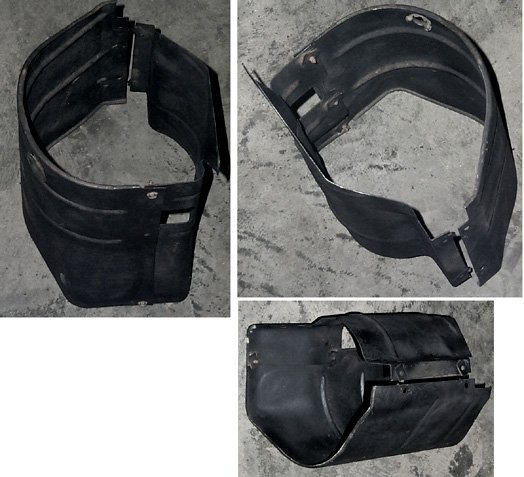

| 7. Generator heat shield for all 64 ½ without air conditioning - optional on K code
|
64.5 Generator Heat Shield |
65 Alternator |
|

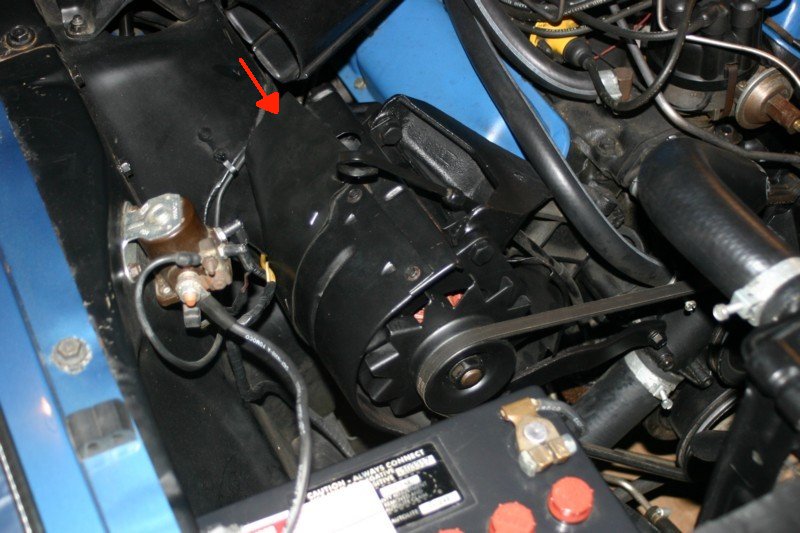

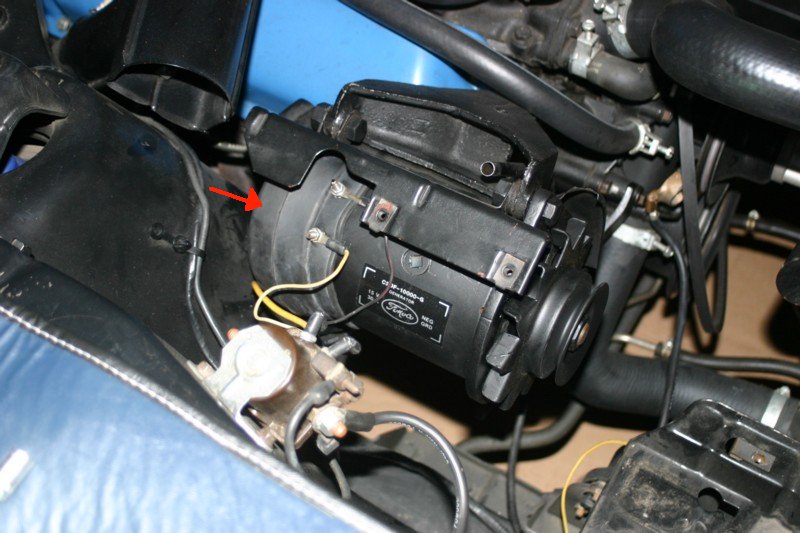

| 8. Generator Splash Shield for all 64 1/2 with heat shield
|
64.5 Generator Splash Shield |
65 Alternator |
|
| 9. Generator rubber boot for all 64 1/2 mounts over generator
|
64.5 Generator Rubber Boot |
65 Alternator |
|
| 10. Windshield washer pump only one level
|
64.5 Washer Pump |
65 Washer Pump |
|

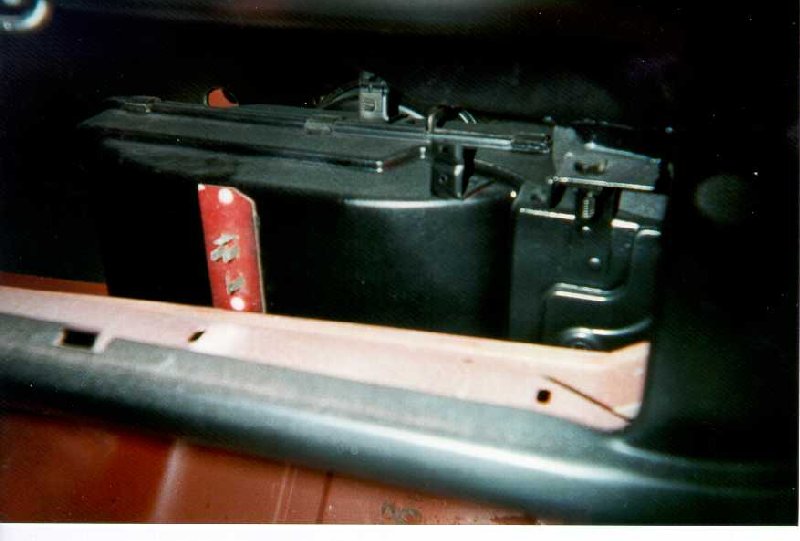

| 11. Heater box has no mounting for resistor circuitry. (Continued into early 65 cars as well.)
|

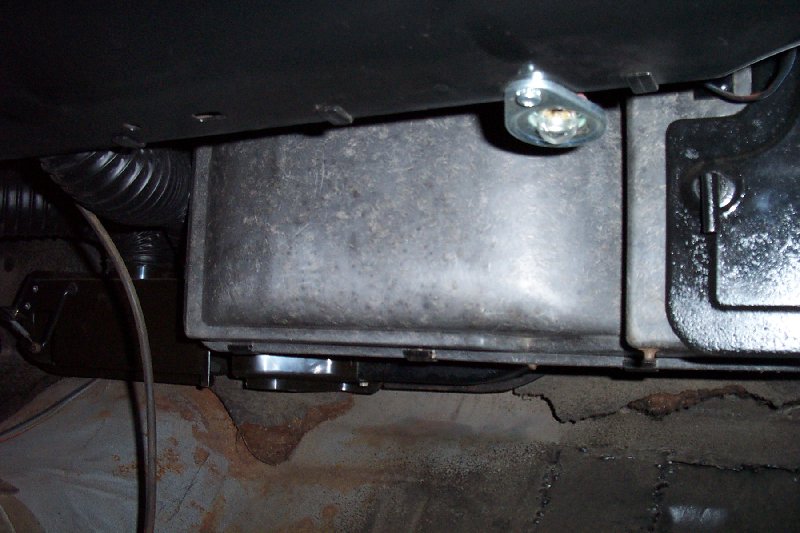

64.5 Heater Box |
65 Heater Box |
|

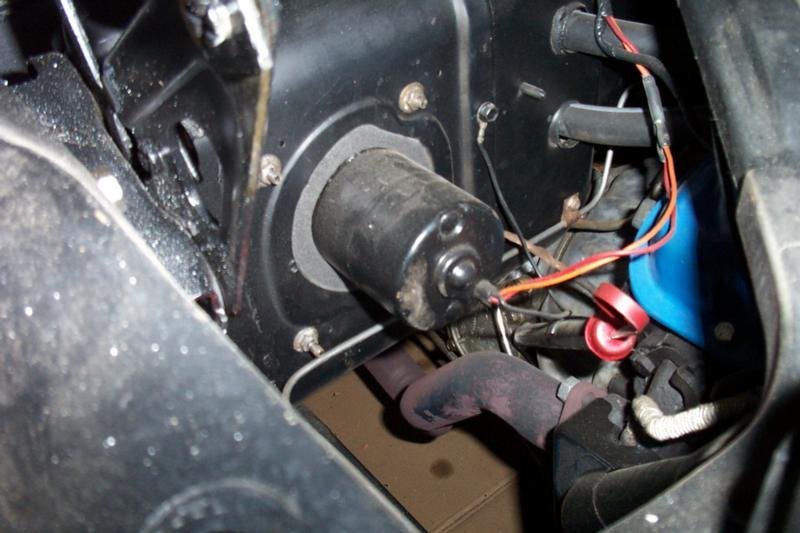

| 12. Heater blower fan two speed with circuitry inside motor; ground cable. (Continued into early 65 cars as well.)
|
64.5 Heater Blower |
65 Heater Blower |
|

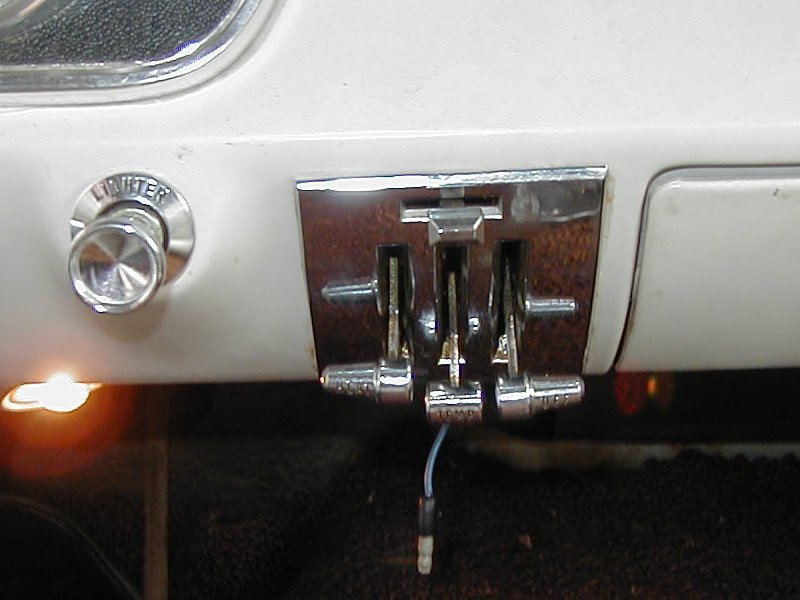

| 13. Heater control switch two speed with off in center position. (Continued into early 65 cars as well.)
|
64.5 Heater Switch |
65 Heater Switch |
|

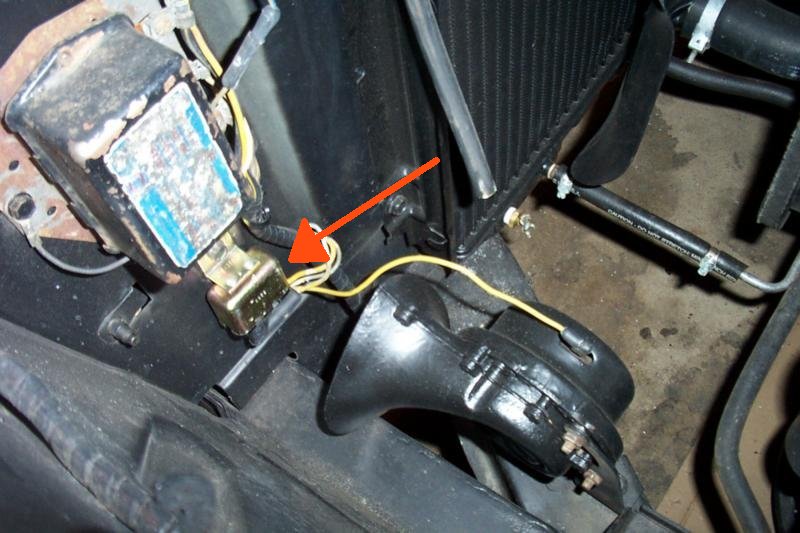

| 14. Horn Relay on all cars with generator; mounts on radiator support.
|
64.5 Horn Relay |
65 No Horn Relay |
|
| 15. [Removed - see Engine #41]
|
|
|
|
| 16. Generator should have black bakelite caps over terminals. (the 2 terminals on side)
|

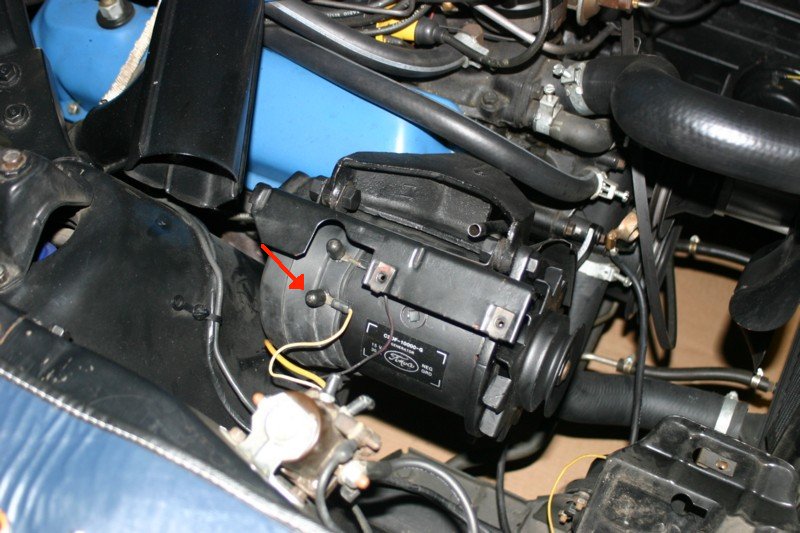

64.5 Generator Terminal |
65 Alternator |
|

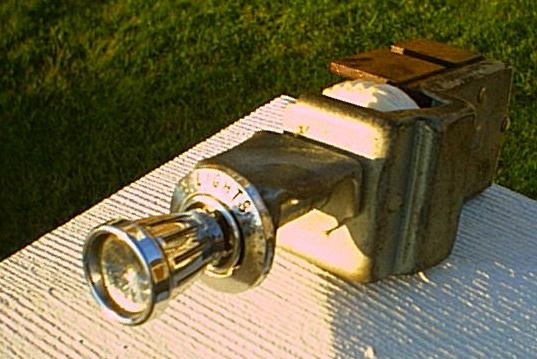

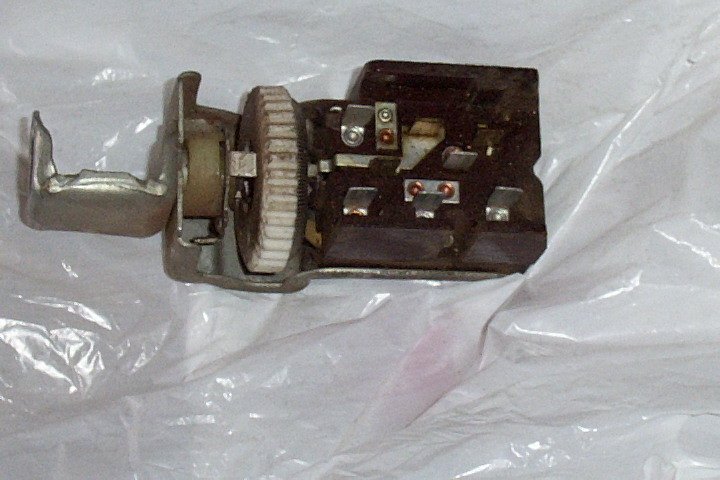

| 17. Headlight switch special before 8/17/64
|
64.5 Headlight Switch |
65 Headlight Switch |
|
| 18. Starter Solenoid brown body instead of black one
|

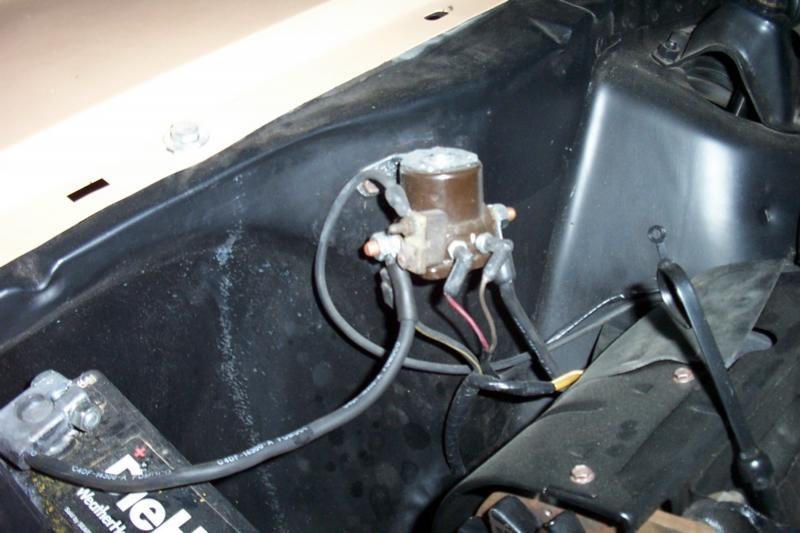

64.5 Solenoid |

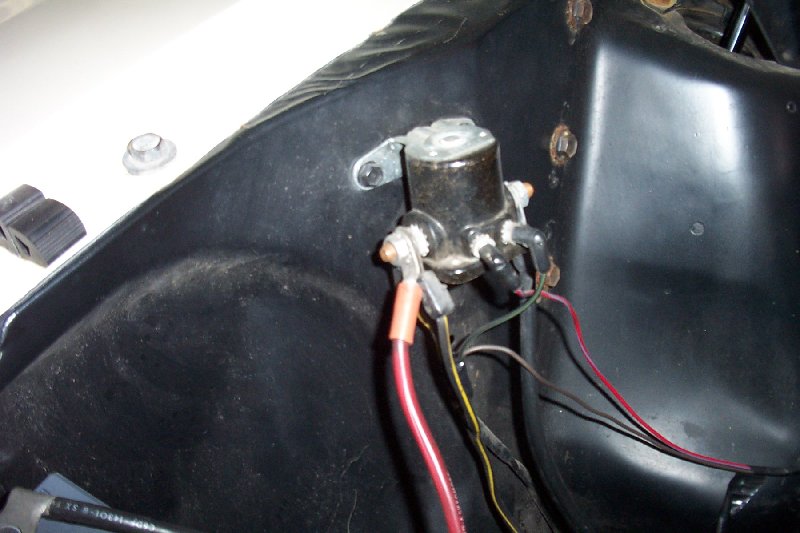

65 Solenoid |
|
| 19. All wiring is completely different; to much to list (generator vs. alternator)
|

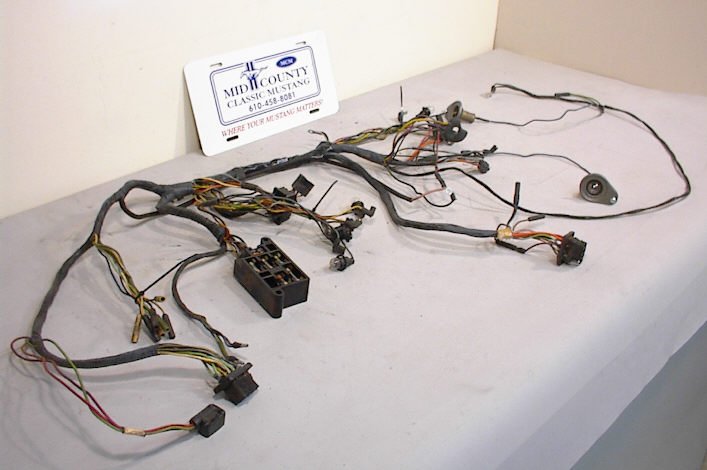

64.5 Wiring |
65 Wiring |
|
